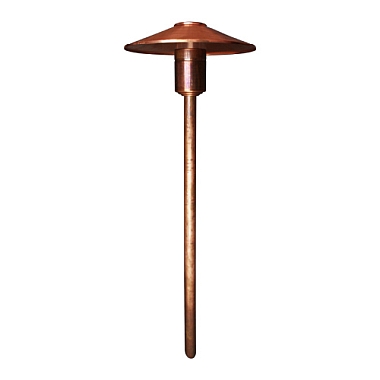

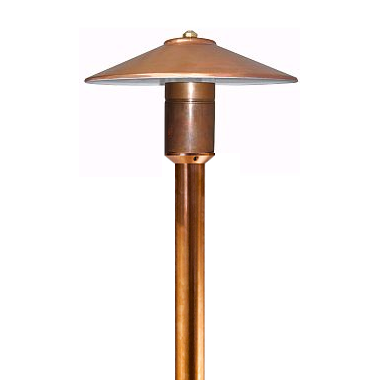

Hunza Tier Lite

The Hunza Tier Lite is suited to medium level foliage. Light is emitted on a horizontal plane around 360°, not projecting any vertical light. This makes this exterior lighting product ideal for illuminating flower beds and small bushes in any home lighting scheme.

Mounted on a 700mm pole the body is machined from 10mm thick aluminium with a UV stable eco matt powdercoated finish, solid copper or 316 stainless steel with high temperature silicon gaskets, UV stable acrylic lens and 260 mm anti-glare hood.

Suitable for use with PureLED or retro fit LED lamps.

Finishes [?]

Eco Matt Powdercoat Colours [?]

Specifications

LED Chip: Cree MTG-2 Plug and Play field replaceable PCB boards
Output: 510 lumens @ 1050mA
Lumens Per Watt: 85 lumens @ 6 watts
Colour Temperature: 2700K, 3000K, 4000K
CRI Warm White (3000°K): 85+ Standard, 90+ Optional
Beam Angles: 360°
Ingress Protection: IP56 / IP66
Standards: AS/NZS 61046, UL 1838, 2108, CSA C22.2 No. 250.7, 250.0-08, CE
Recommended Power Supply: Remote (Series) Driver, Retro 110/240 volt driver

Downloads


Specifications

Tier Lite PureLED
Tier Lite

Instructions

Tier Lite PureLED
Tier Lite

Photometrics

Tier Lite

Path Lighting Range


Tier Lite Effects
