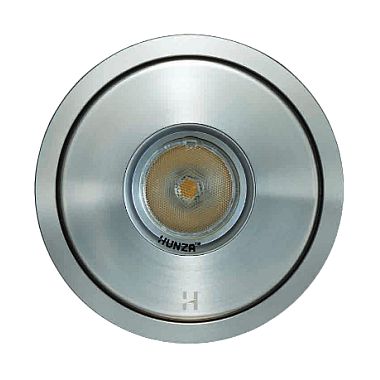

Hunza Flush Floor Lite

The Hunza Flush Floor Lite has been designed to mount flush with the level of a pathway, hotel floor or a building foyer. The ‘Flush Fit’ lens stops water pooling and depositing dirt on the lens. There is no lip to trip over and the luminaire can be driven over or walked upon without being damaged ( maximum drive over speed 6 mph and maximum vehicle weight 1,500kg).

Where beam correction and directional adjustment is required Hunza have developed the Tilting Flush Floor Lite. The tilting module allows 360° rotation and 12° tilt from the centre. The spherical gimbal allows infinite beam correction for uneven surfaces and directional adjustment for glare control.

The square shape of the Flush Floor Lite Square makes it ideal for mounting in tiled areas. Both versions of the Flush Floor Lite have a 104mm diameter flange.

This low voltage fitting is suitable for use and supplied with a MR16 – 20 watt (max) high quality European 5000 hour lamp and it’s own canister.

Lifetime Warranty on Lens Breakage

Power Supply

Light Ideas T-50 or Hunza Buriable IG20 safety isolating transformer (single installation), multi installation with any of the Light Ideas transformer range or Hunza IG safety isolating transformers, alternatively the Hunza Wall Mount series WMl00 – WM3OO Double Insulated Safety Isolating Transformers.

Available Options & Finishes

316L Stainless Steel or Copper
FFL/### Flush Floor Lite

316L Stainless Steel only
FFL/SQ-### Flush Floor Lite Square


CJK150 – Cable Joint Kit (available in single kits or packs of 5)
LED/LP-## – MR16 LED (available in Warm White, Cool White and Blue)
LED/LP-#W-EIS-##D – CREE LED (CW=Cool White, WW=Warm White)

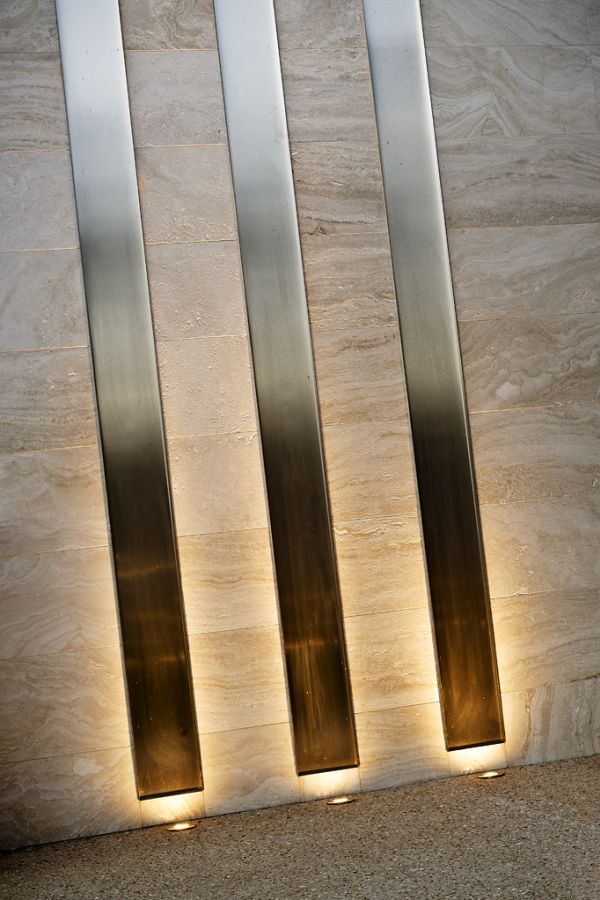

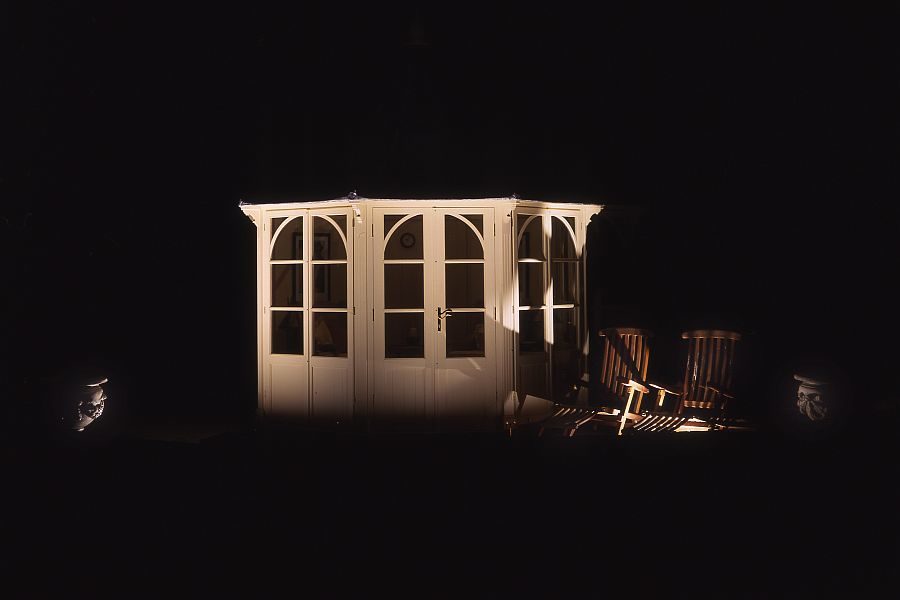

Flush Floor Lite Effects
